מתאם JEYI Dual M.2 PCIE 4.0 Adapter for NVME (M Key) and SATA (B Key) SSD to PCIe X4 X8 X16 Slot SK6

₪115.00

זמין במלאי

מק"ט: 156DR6 קטגוריות: , , , ,
Download Catalog

תיאור

Description

• Dual M.2 PCIE 4.0 Adapter: The JEYI Dual M.2 PCIE 4.0 Adapter is a versatile tool that allows for the connection of NVMe / NGFF SSDs to PCIe x4, X8 X16 slots on desktop PCs.

• NVMe (m Key) and SATA (b Key) SSD Compatibility: This adapter is compatible with both NVMe (m Key) and SATA (b Key) SSDs, making it a valuable addition to any desktop PC setup.

• Add On Cards Category: As part of the Add On Cards category, this product is designed to enhance and expand the functionality of your system.

• PCI Express Interface Type: The PCI Express interface type ensures fast and efficient data transfer between the SSD and the PCIe slot, improving overall system performance.

• Desktop PC SK6 Model: Specifically designed for Desktop PC SK6 models, this adapter provides a perfect fit and seamless integration.

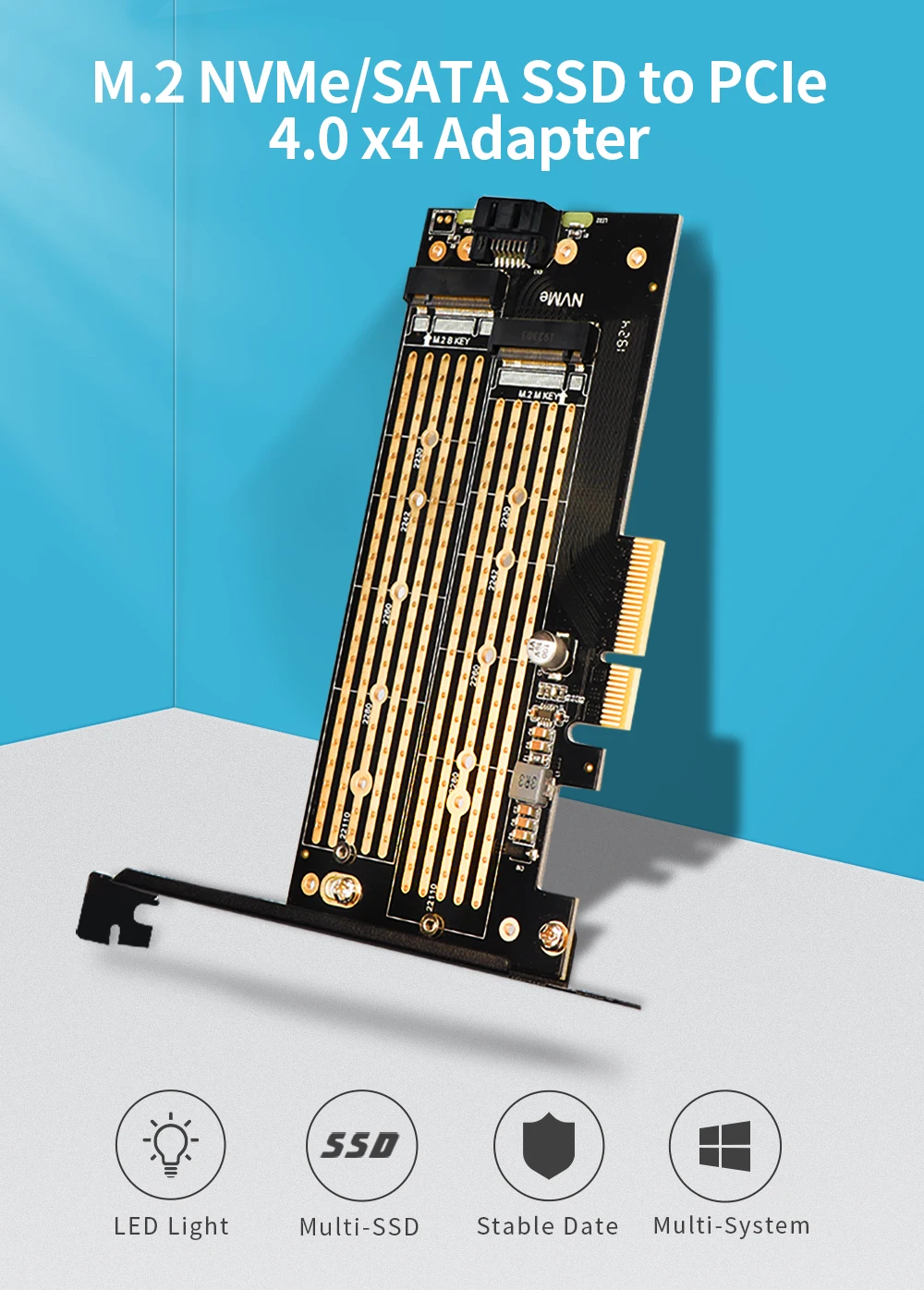

➤ Supports two M.2 SSD simultaneously (One SATA interface and one NVMe interface)

➤ Converts one M.2 NVMe SSD (M Key) interface to PCIe 4.0 x4 interface (PCIe 3.0 2.0 1.0 Compatible), Converts one M.2 SATA SSD (B Key or B+M Key) interface to SATA 6Gbps interface (SATA cable connection required).

➤ With an advanced heat sink solution, PCB 24 X 5 copper hole provides effective ventilation and heat dissipation, including 2 heat sinks

➤ Supports M.2 SSD size 2230, 2242, 2260, 2280, 22110mm

➤ Including a regular-sized slot bracket for flexible system chassis installation. LED power and data transfer status. No driver installation required



Supports NVME & SATA Dual M.2 SSD

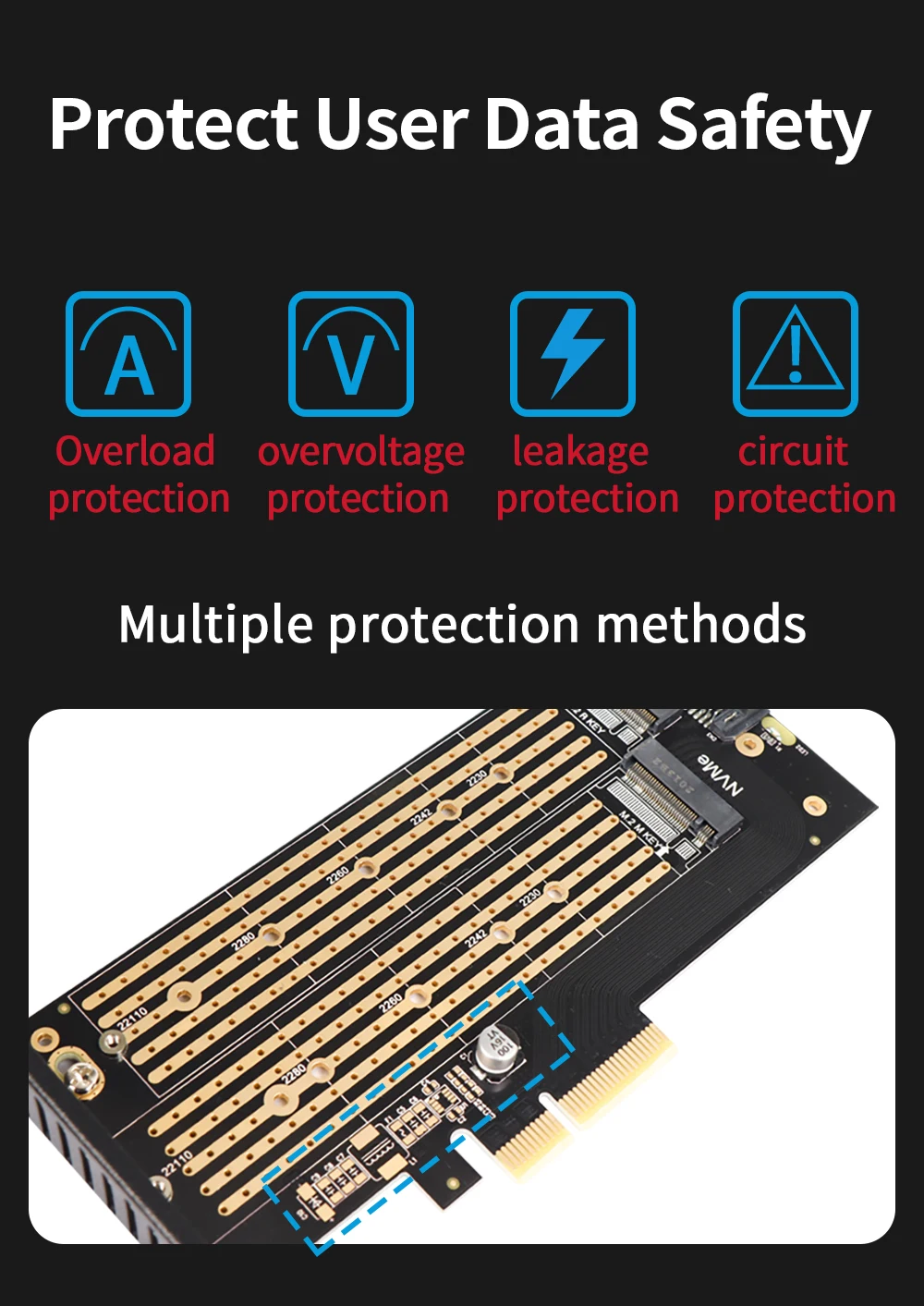

Protect User Data Safety

1. Overload protection

2. overvoltage protection

3. leakage protection

4. circuit protection

The M.2 SATA (NGFF) Disk Must Be Connected to The SATA Interface with a SATA Cable

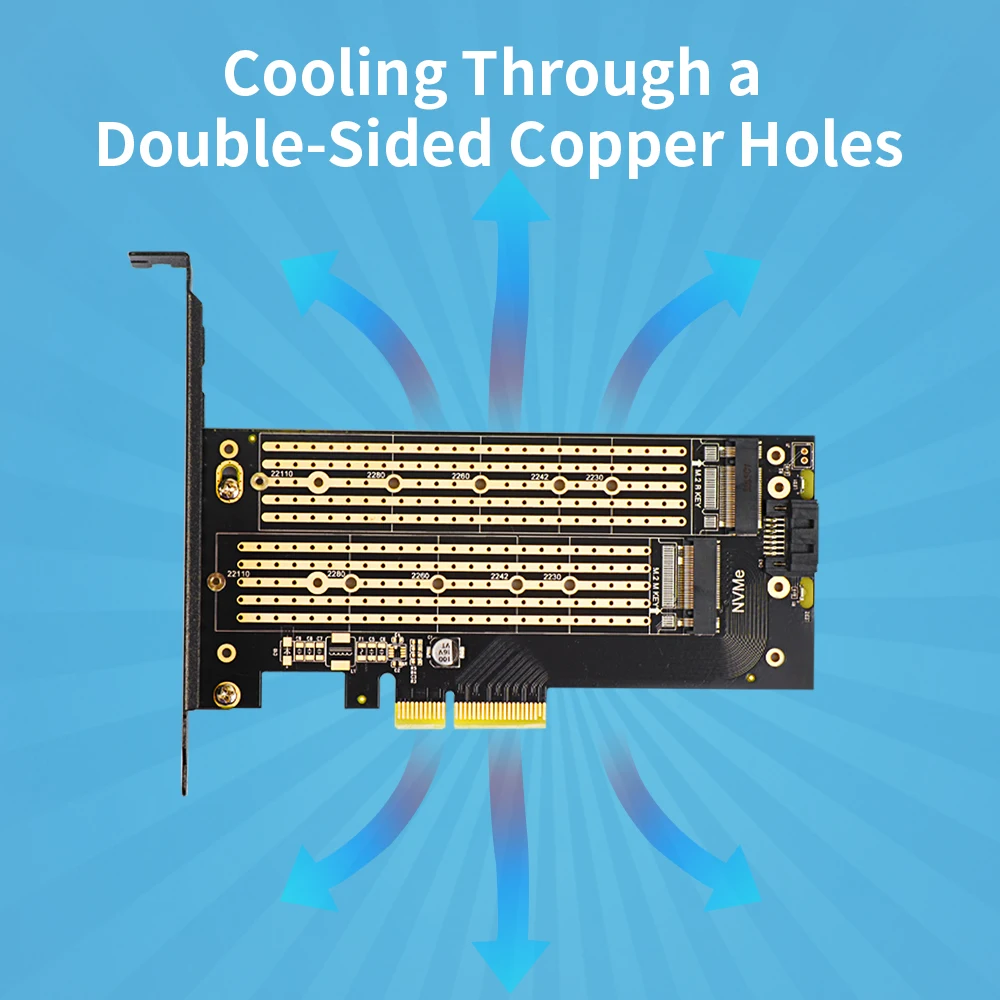

Cooling Through a Double-Sided Copper Holes

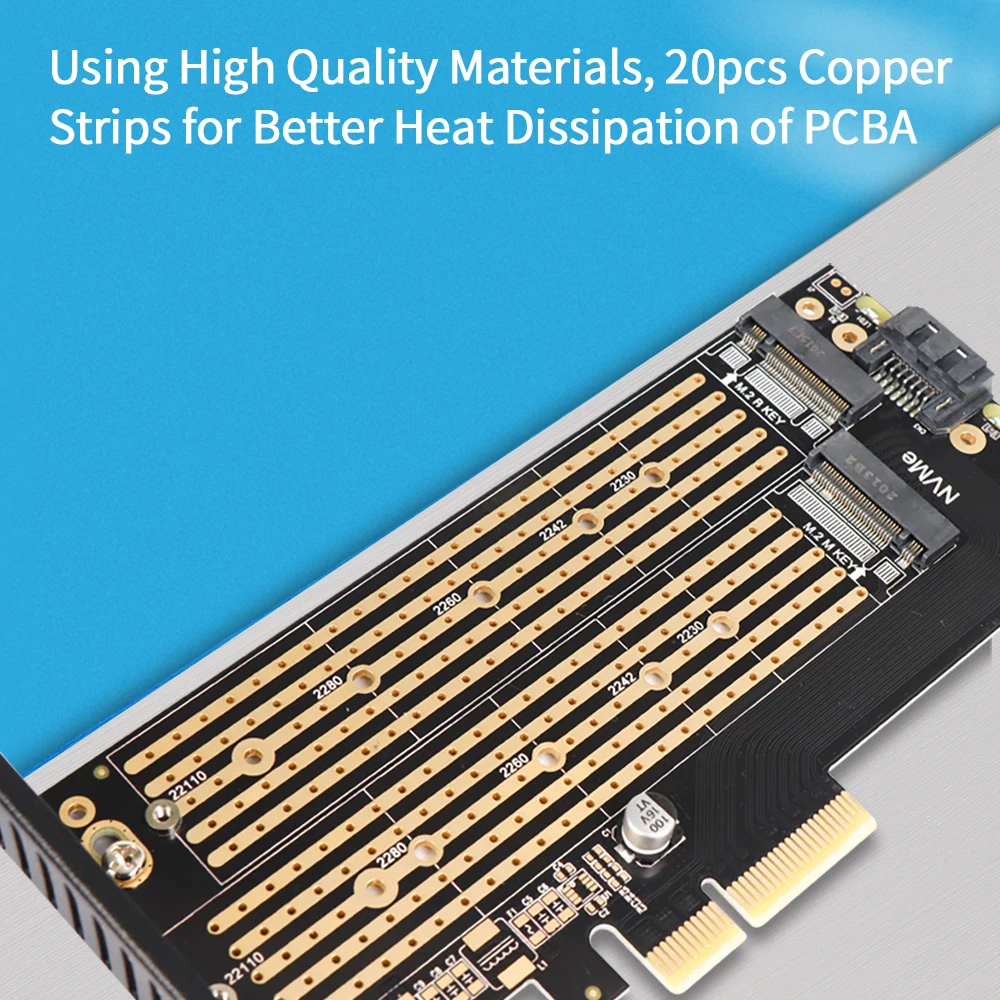

Using High Quality Materials, 20ps Copper Strips for Better Heat Dissipation of PCB

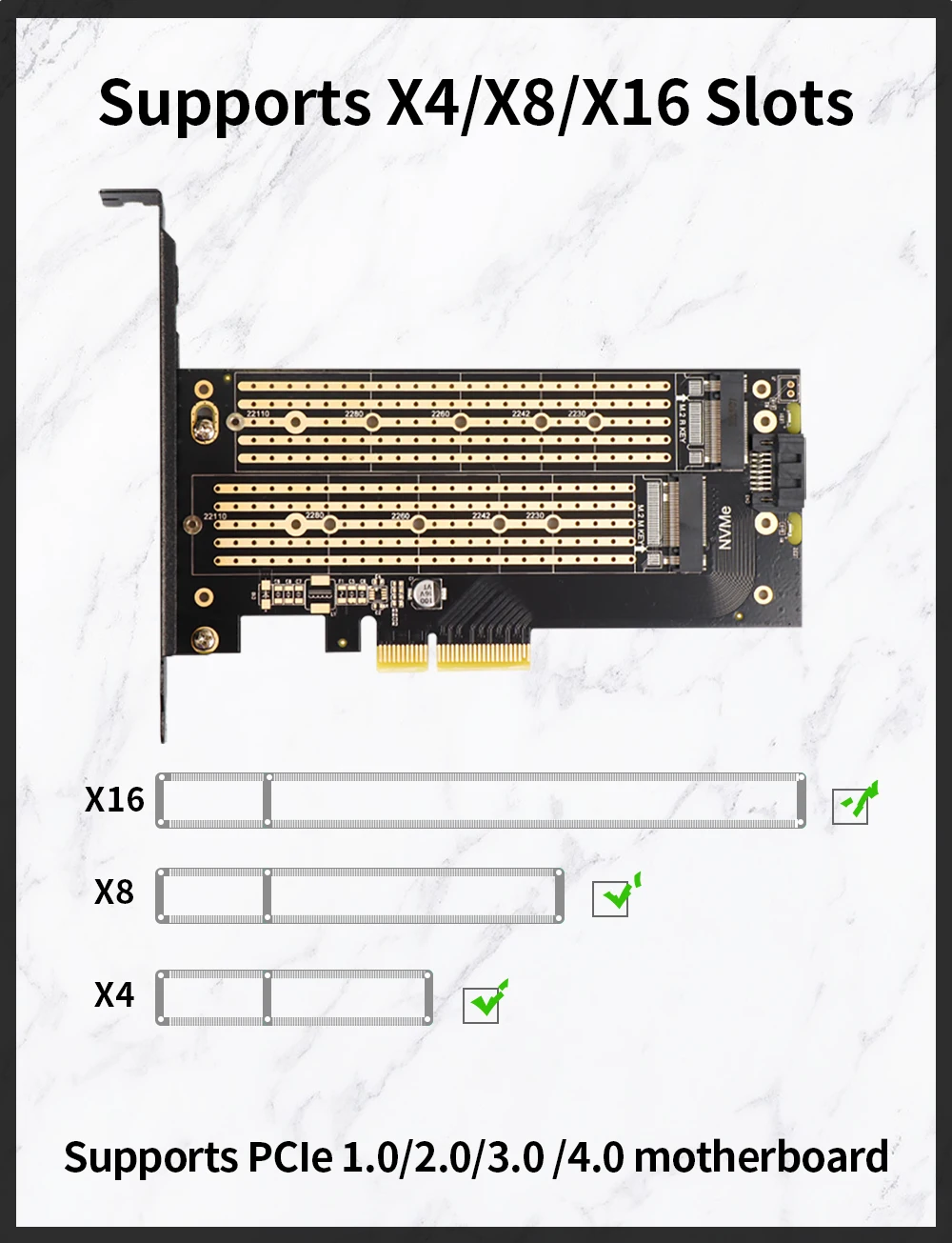

Widely Compatibility
1. Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm,30mm SSD
2. Supports PCIe 1.0, PCIe 2.0, PCIe 3.0, and PCIe 4.0 motherboards
3. supports PCIe X4 X8X16 slots

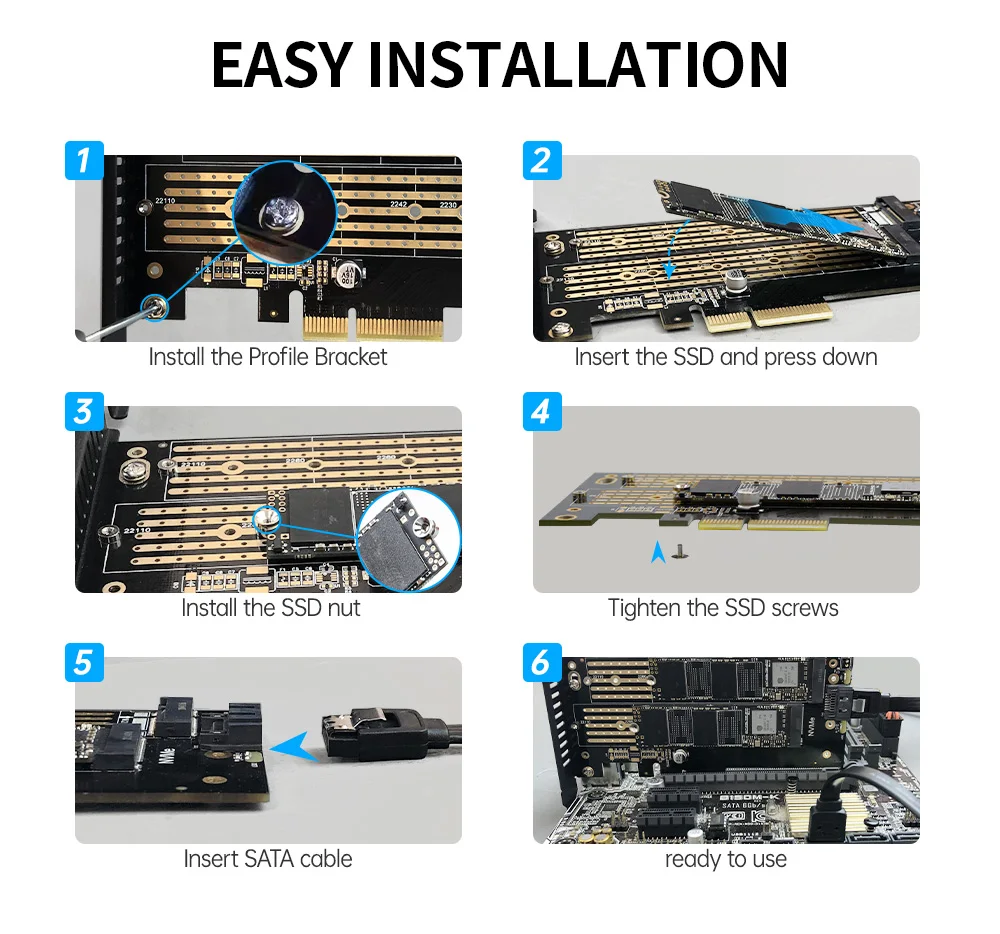

Eazy Installation

1. Install the Profile Bracket

2 . Insert the SSD and press down

3. Install the SSD nut

4. Tighten the SSD screws

5. Insert the SATA cable

6. ready to use

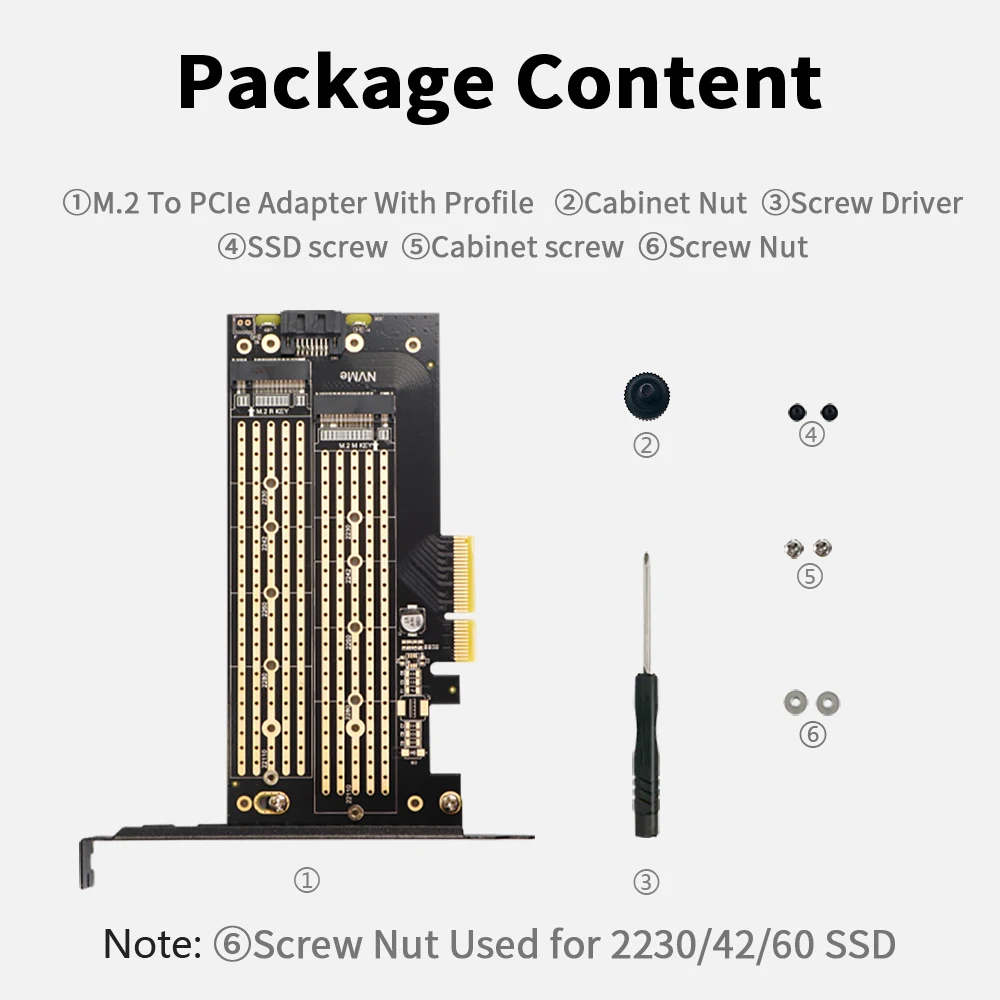

Package Includes

Dual M.2 SSD Adapter Card with Profile Bracket ×1

Cabinet screw ×1

Screwdriver ×1

SSD screws (for 2280 22110 SSD) ×2

SSD screws (for 2230 2240 2262 SSD) ×2

Profile Bracket screws ×2

NOTE :

 The 7-pin SATA cable must be connected to the motherboard to read the M.2 SATA SSD (Key B).

This adapter only supports PCIe X4, X8, and X16 slots. DO NOT support PCIe X1 and PCI slot.
